Wideband Multimode Circulator (WMC)
Our Wideband Multimode Circulators (WMC) are three-port components allowing for efficient management of multimode light. They can be used to combine illumination and collection channels in a single optical fiber or to combine two illumination signals. They are fused fiber devices featuring a flat spectral response over a wide range, while their asymmetrical structure promotes an improved transfer ratio.
WMCs are available in a variety of optical fiber diameters and numerical apertures (NA). They provide an efficient, versatile, and robust solution for multimode light management in applications such as diffuse reflectance, fluorescence spectroscopy, or optogenetics.
Overview

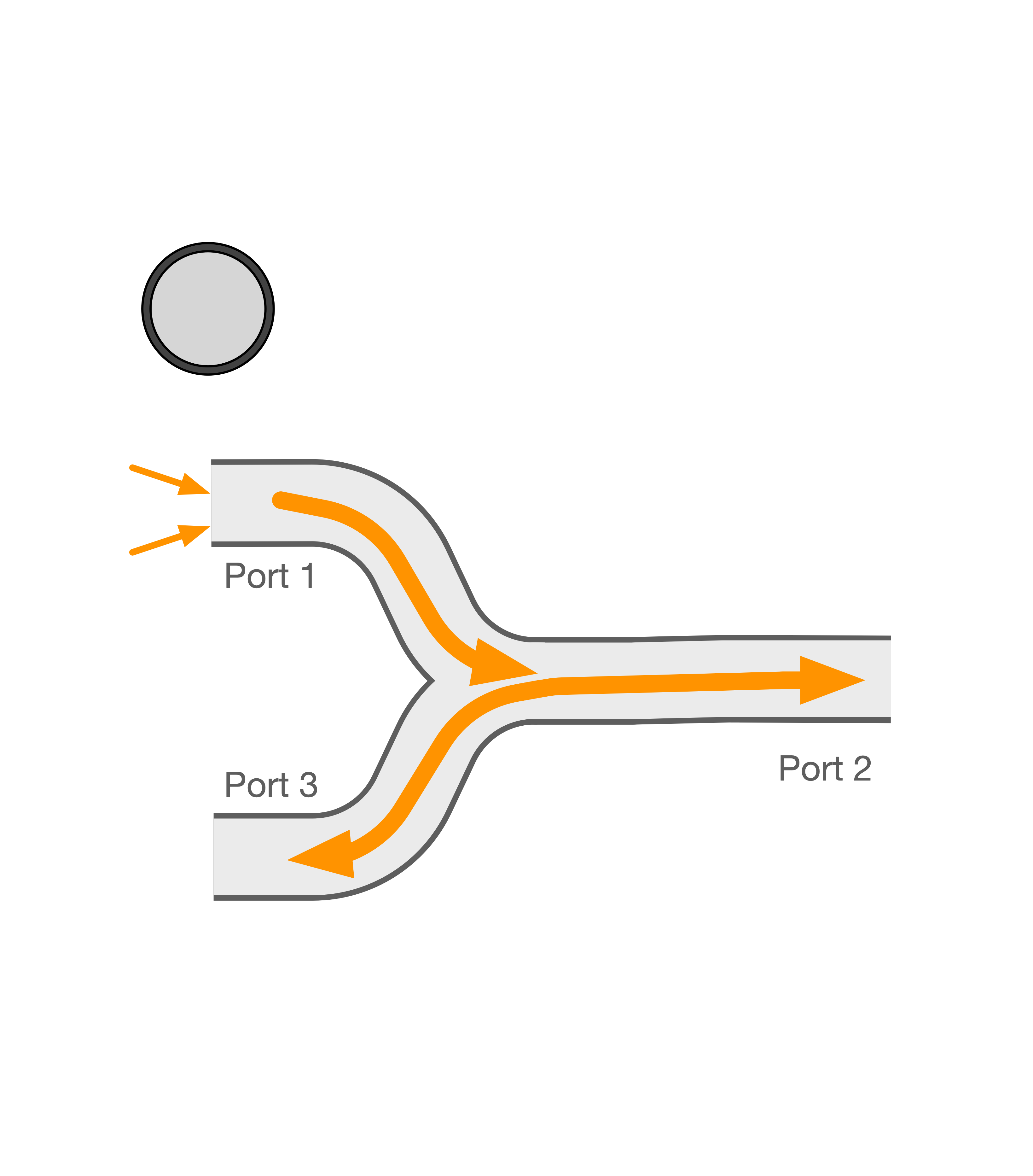

A WMC can function as a circulator or a combiner. Compared to standard multimode couplers, the WMC features greater efficiencies in and out of a common port and with better isolation. This three-port device allows incident light at Port 1 to travel in only one direction (transfer) while allowing bi-directional travel between Ports 2 and 3 (transmission).
When used as a circulator, a signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 preferentially, with high isolation towards Port 1. When used as a combiner, light entering Ports 1 and 3 will exit Port 2 with minimal loss.
Key features:
- Mode insensitivity
- High coupling efficiency
- Suitable for Fluorescence, Spectroscopy, or Optogenetics Applications
Possible customizations:
- Low autofluorescence packaging
- OEM packaging
- High return loss connectors
Product lines
WMC1H1 : High OH
Wavelength range: 400-900 nm
Multimode transfer (Port 1 to 2): ≥70%
Multimode transmission (Port 2 to 3): ≥70%
Multimode transmission (Port 3 to 2): ≥70%
Port 1 Fiber: 50 µm, 0.22NA
Port 2 & 3 Fiber: 105 µm, 0.22NA
Available with FC-PC or SMA905 connectors.
WMC1L1 : Low OH
Wavelength range: 400-1600 nm
Multimode transfer (Port 1 to 2): ≥70%
Multimode transmission (Port 2 to 3): ≥70%
Multimode transmission (Port 3 to 2): ≥70%
Port 1 Fiber: 50 µm, 0.22NA
Port 2 & 3 Fiber: 105 µm, 0.22NA
Available with FC-PC or SMA905 connectors.
WMC2L1 : Low OH
Wavelength range: 400-1600 nm
Multimode transfer (Port 1 to 2): ≥80%
Multimode transmission (Port 2 to 3): ≥80%
Multimode transmission (Port 3 to 2): ≥80%
Port 1 Fiber: 105 µm, 0.15NA
Port 2 & 3 Fiber: 200 µm, 0.22NA
Available with FC-PC or SMA905 connectors.
WMC3L1 : Low OH
Wavelength range: 400-1600 nm
Multimode transfer (Port 1 to 2): ≥80%
Multimode transmission (Port 2 to 3): ≥80%
Multimode transmission (Port 3 to 2): ≥80%
Port 1 Fiber: 105 µm, 0.22NA
Port 2 & 3 Fiber: 200 µm, 0.39NA
Available with FC-PC or SMA905 connectors.
WMC4H1: High OH
Wavelength range: 400-900 nm
Multimode transfer (Port 1 to 2): ≥85%
Multimode transmission (Port 2 to 3): ≥85%
Multimode transmission (Port 3 to 2): ≥85%
Port 1 Fiber: 200 µm, 0.22NA
Port 2 & 3 Fiber: 400 µm, 0.39NA
Available with FC-PC or SMA905 connectors.
WMC4L1 : Low OH
Wavelength range: 400-1600 nm
Multimode transfer (Port 1 to 2): ≥85%
Multimode transmission (Port 2 to 3): ≥85%
Multimode transmission (Port 3 to 2): ≥85%
Port 1 Fiber: 200 µm, 0.22NA
Port 2 & 3 Fiber: 400 µm, 0.39NA
Available with FC-PC or SMA905 connectors.

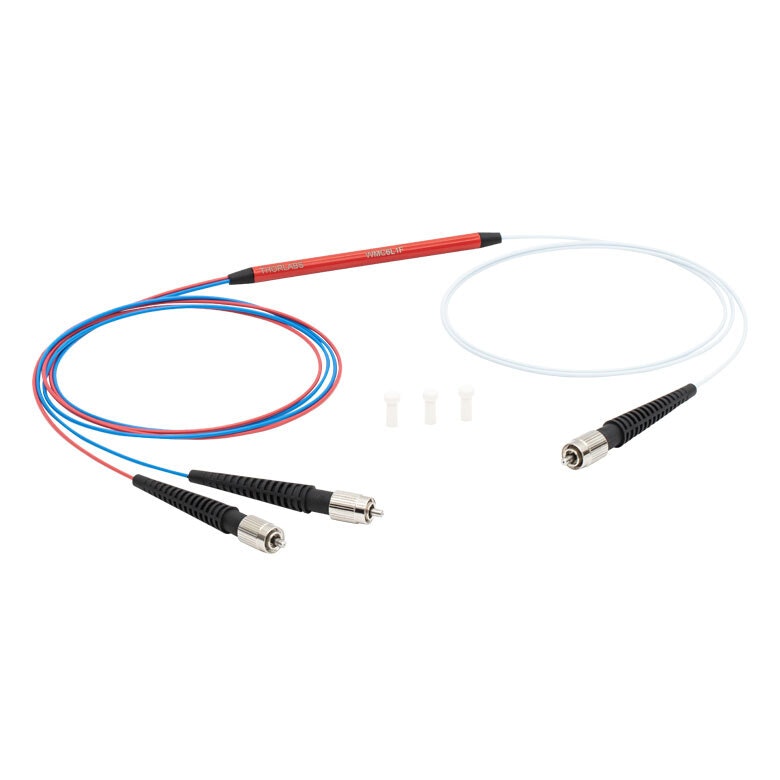

WMC6L1 : Low OH
New product!
Wavelength range: 400-1600 nm
Multimode transfer (Port 1 to 2): ≥85%
Multimode transmission (Port 2 to 3): ≥85%
Multimode transmission (Port 3 to 2): ≥85%
Port 1 Fiber: 400 µm, 0.22NA
Port 2 & 3 Fiber: 600 µm, 0.39NA
Available with FC-PC or SMA905 connectors.
Applications related to this product
Biomedical Imaging
Spectroscopy
Quantum Optics
Need a Custom Product?
Castor Optics offers customized options for all of available products. Please provide a detailed description of your inquiry and our team of scientists and engineers will evaluate your request.
